Caratteristiche

Specificazioni

Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Energy & Mining

Showroom Location: Egypt, Turkey, United States, Viet Nam, Philippines, Peru, Pakistan, Russia, Morocco, South Korea, UAE, Algeria, Bangladesh, South Africa, Kazakhstan, Uzbekistan

Condition: New

Usage: Nitrogen

Production Rate: 3-3000Nm3/h

Voltage: 220V/380V

Weight: 3500 KG

Dimension(L*W*H): 3500x2200x2400MM

Warranty: 1 Year

Key Selling Points: Sustainable

Marketing Type: Hot Product 2019

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: More than 10 years

Core Components: Pressure vessel

Name: PSA nitrogen generator

Model: CBN

Capacity: 5-3000Nm3/h

Purity: 95-99.999%

Pressure: 0.1-0.8Mpa

HS Code: 8419609090

Dew point: â‰¤-40â„ƒ

After-sales Service Provided: Online support

Technology: Pressure Swing Adsorbtion (PSA)

Type: Skid Mounted

Informazioni di base

Model Number: CBN

Termini di pagamento e spedizione

Packaging Details: Standard export packing

Supply Ability: 50 Set/Sets per Quarter High Purity Nitrogen Making Machine For Food Packing/Injection

Descrizione di prodotto

Product Overview

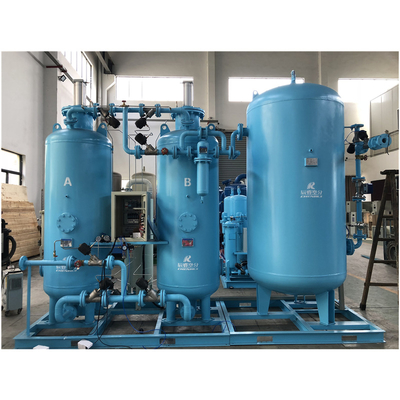

PSA Nitrogen generator principle

PSA nitrogen generator is an automatic equipment which separate nitrogen from air. According
to the performance of molecular sieve, its adsorption when pressure risen and desorption when pressure loose. Molecular sieve’s surface and inner surface and interior are filled with micro pores. Oxygen molecule has a faster diffusion rate of molecular sieve and nitrogen molecules has a slower diffusion rate. Nitrogen molecules are enriched in the end from the absorption tower.
Nitrogen generator is constructed according to the principle of operation pressure swing adsorption and it compressed by two absorption towers filled up with molecular sieve. The two absorption towers are crossed by compressed air (previously purified oil, water,dust, etc) . While one of the absorption tower produce nitrogen, the other one release oxygen gas to atmosphere. The process comes in cycle way. The generator is controlled by PLC.

Perfect process design get high performance. Unique vacuum molecular sieve filling system and impacted technology increase the life of molecular sieve. Skid-mounted structure makes installation and transportation more convenient. With DCS controller system and remote output and control system. High automatic, unmanned operation.

PRODUCT SPECIFICATIONS

No	Item	Data
1	Nitrogen Capacity	3-3000Nm3/h
2	Nitrogen Purity	95-99.999%
3	Nitrogen outlet pressure	0.1-0.8 MPa (1-8Bar) adjustable or according to user’s requirement

FEATURES AT A GLANCE

1.Full Automation

2. Lower Space Requirement

3. Fast Start-up

4. High Reliability

5. Molecular Sieves life

6.Adjustable

CBN-1000C

CBN-350C

CBN-200C

Successful Project

SIMILAR PRODUCTS

Company Profile

SALES AND SERVICE NETWORK

FAQ

Q1：Are you manufacturer or Trade Company?

We are the manufacturer of Oxygen Generator, nitrogen generator and liquid nitrogen generator, founded in 2010.
Q2: What's the order nitrogen generator process?
a. Inquiry---provide us all clear requirements.
b. Quotation---official quotation form with all clear specifications.
c. Contract confirmation---provide correct contract details.
d. Payment terms
e. Production
f. Shipping
g. Installation and commissioning
Q3: What terms of payment you use?
T/T, L/C etc.
Q4: What certification do you have?
we have ISO9001, ISO45001, ISO14001 and many patent certifications.
Q5: How to get a prompt quotation of Oxygen Generator?
When you send the inquiry to us, pls kindly send it with below technical information.
1) N2 capacity: _____Nm3/hr( or How many cylinders do you want to fill per day(24hours))
2) N2 purity: _____%
3) N2 discharge pressure: _____Bar
4) Voltages and Frequency : ______V/PH/HZ
5) Application:
6) Project Location

If you have any question, please do not hesitate to contact us.
