Caratteristiche

Specificazioni

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction worksÂ , Energy & Mining, Food & Bevera

Showroom Location: None

Condition: New

Type: Screw

Configuration: Stationary

Power Source: Diesel

Lubrication Style: Oil-free

Mute: Yes

Voltage: Customer's Requirement

Warranty: 1 Year

Working Pressure: 14 bar, 7 bar, 8 bar, 0.8 bar, 2 bar, 20 bar, 13 bar, 6 bar, 12 bar, 1 bar, 10 bar, 35 bar, 5 bar, 0.4 bar, 0.6 bar

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Marketing Type: New Product 2019

Warranty of core components: 1.5 years

Core Components: PLC, Pressure vessel, Engine, Motor, Pump, Bearing

Gas Type: Oxygen

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: None

After-sales Service Provided: Online support

Informazioni di base

Termini di pagamento e spedizione

Packaging Details: Wooden box

Supply Ability: 1000 Set/Sets per Month

Descrizione di prodotto

Product Description Whatsapp:008618936889762

Our company produced many kinds of oil free compressor, inlcuding oil free air compressor, oil free gas compressor, including oxygen gas, nitrogen gas, hydrogen gas, natural gas, Argon gas, helium gas, Sf6 gas ects more than thirty kinds of gas medium,max pressure up to 40Mpa.

Our oxygen compressor is total oil free, do not use any lubricate oil, and for the cylinder use stainless steel material, piston
ring is self-lubricated material, all this guarantee oxygen is clean and no-pollution. Compressor working speed is slow, normally 200-400 rpm, to keep working do 24 hours heavy duty loading, this Oxygen compressor main use for hospital oxygen supplier center, to increase oxygen supply line pressure to the room, also can boost oxygen, and filling to the cylinder, such as 15Mpa, 20Mpa, also our oxygen booster, can use in Industrial acetylene cutting, cutting steel scrap in steel factory, support Boiler oxygen combustion recycle the cryogenic liquid oxygen tank vapor oxygen to the tank.

Normally, according to customer oxygen application condition, our oxygen compressor has one pressure stage, two pressure stage, three pressure stage, and four pressure stage, and five pressure stage, by the cylinder, has single, double, three, and four cylinder.

Oilless High Pressure O2 Compressor Specification
NO.	Volume	Inlet pressure	Outlet pressure	Type	Cooling type
1	1-3m³	0.3-0.4MPa	15MPa	2 lines 4 stages vertical type	Wind
2	4-12m³	0.3-0.4MPa	15MPa	2 lines 4 stages vertical type	Wind
3	13-40m³	0.3-0.4MPa	15MPa	3 lines 3 stages W type	Water
4	13-60m³	0.2-0.4MPa	15MPa	2 lines 4 stages vertical type	Water
5	40-80m³	0.2-0.4MPa	15MPa	4 lines 4 stages S type	Water
6	80-120m³	0.2-0.4MPa	15MPa	4 lines 4 stages S type	Water

Low Pressure O2 Booster Compressor Performance Characteristics

1.Air cooled or water-cooled type 2.Power range: ≤55KW
3.Speed range: 300-600r/min
4.Flow range: 1000Nm³/h
5.Inlet pressure:0-0.6MPa
6.Outlet pressure: ≤10MPa
7.Compression stage: 1-4 stages

CONTACT US

Whatsapp/Mob: +86 18936889762; Email: gaoyuu@njbangwin.com

Application Show Whatsapp:0086 18936889762

Our Factory

The production base covers an area of about 50 acres and has a modern standard factory building with a construction area of nearly 14,000 meters. More than 120 employees, more than 40 college graduates, 18 professional R & D personnel, first-line operators are technical experts with special operational skills.

FAQ

If you have compressor inquiry please tell us follows information when you send inquiry:

*Compressor working medium: If single gas ,how many purity ? if mixed gas , what’s gas content lit ?
*Suction pressure(gauge pressure):_____bar
*Exhaust pressure(gauge pressure):_____bar
*Flow rate per hour for compressor: _____Nm³/h
Compressor gas suction temperature:_____℃
Compressor working hours per day :_____hours
Compressor working site altitude :_____m
Environment temperature : _____℃
Has cooling water in the site or not ?______
Voltage and frequency for three phase :____________
Do not has water vapor or H2S in the gas ?______
Application for compressor？__________

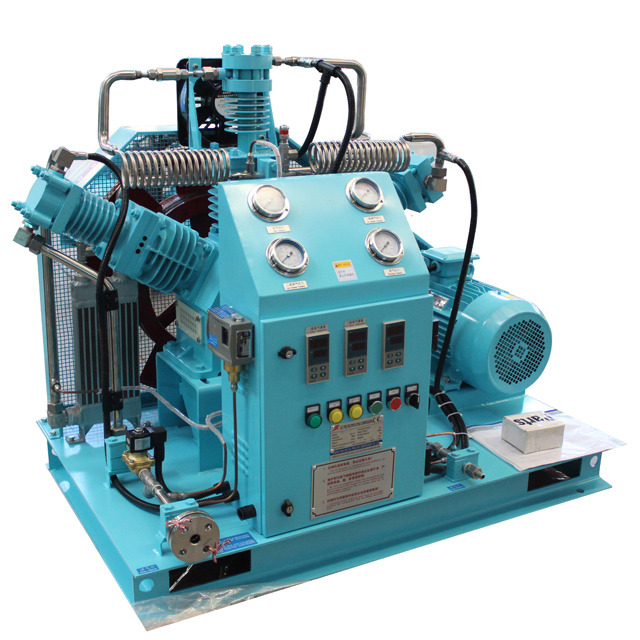

150bar 10Nm3/h Propeller Oil Free Oil Free Oxygen Gas Compressor
